Shovelution Cylinder Set Big Bore 3-5/8″, Black Coated

US$1,550

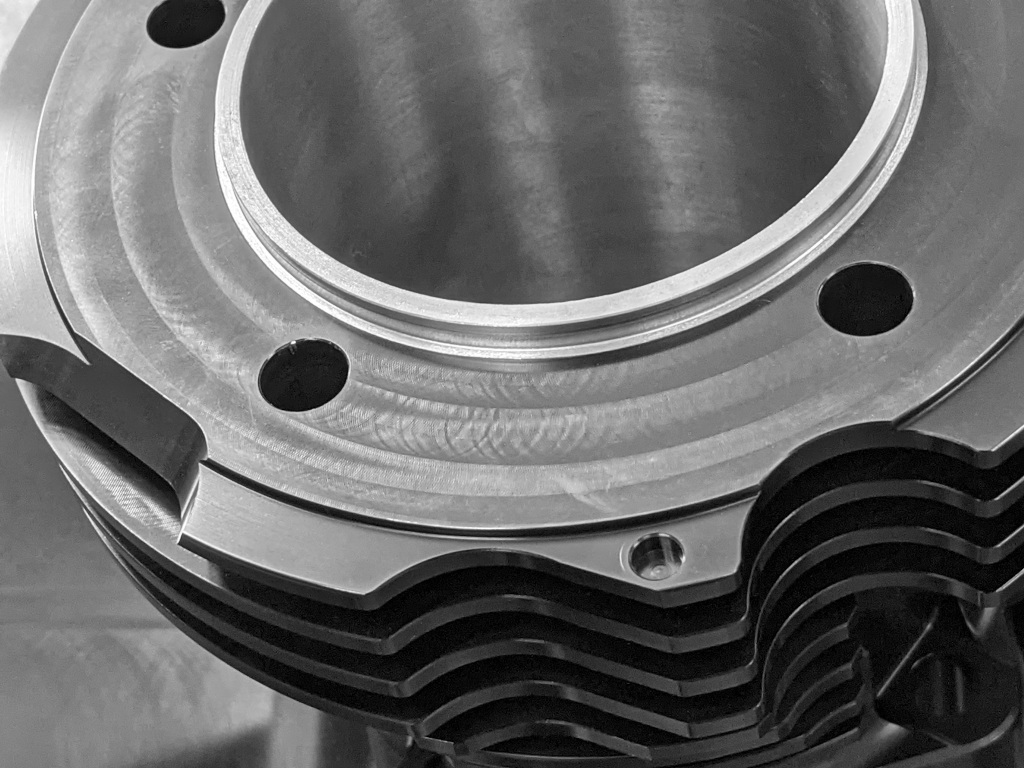

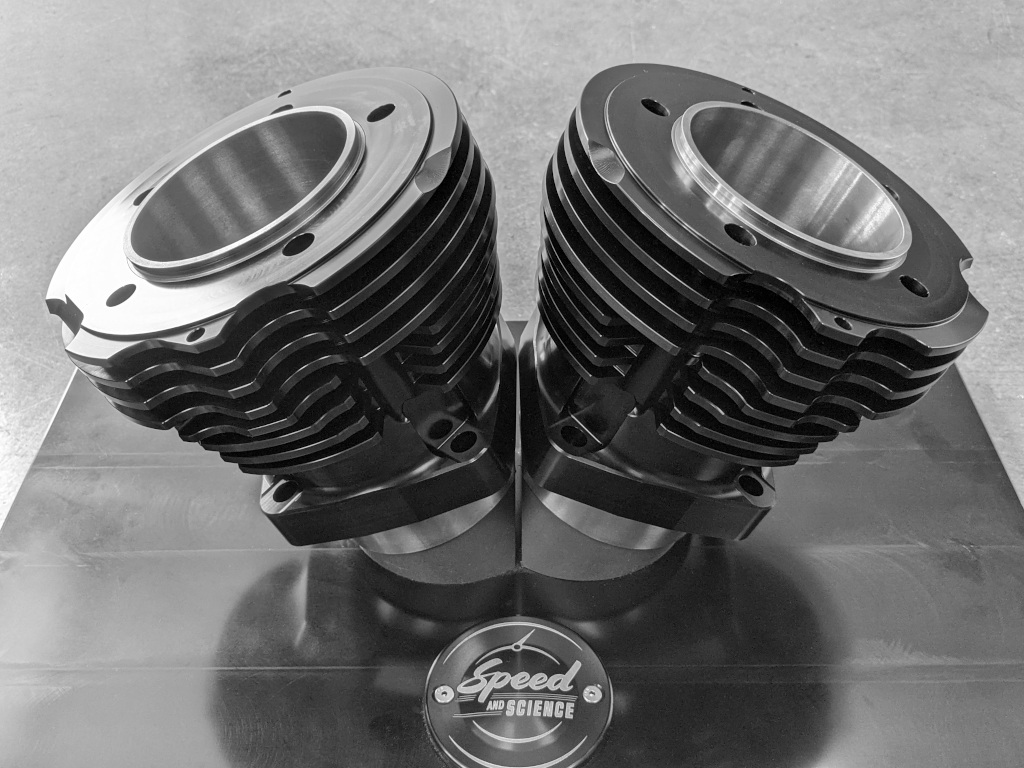

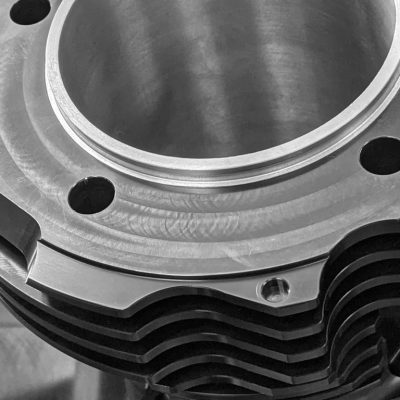

Black-coated Speed And Science Big Bore (3-5/8″) Billet Aluminum Shovelution Cylinders.

Available on backorder - please call for lead time

Description

Shovelution Cylinders Big Bore 3-5/8″ by Speed And Science®.

***UV- and Heat-Resistant Black Anodized parts***

***SPECIAL ORDER ITEM, please allow 3-4 weeks to ship***

  • This product allows for an easy installation of either Shovelhead or PanShovel headsets on the EVOLUTION bottom end.
  • Billet Aluminum outer shell.
  • Suitable for all ’84-’99 EVOLUTION models, this product requires engine cases to be bored out to 3.880″ in order to accept the cylinder spigots.
  • Cylinders are supplied 5.440″ long and yield 96CUI with 4-5/8″ stroke crankshafts. Longer stroke requires using stroker plates (not supplied). Shorter strokes (4-1/4 and 4-1/2) require base trimming.
  • Comes with pressed-in, centrifugally spun Grey Iron liners, undersized by -.030″ to allow for bore / hone to fit customer’s pistons. Liner’s beefy, 1/8″ wall thickness allow for all available oversized pistons.
  • Liners are replaceable, making the product infinitely rebuildable.
  • Custom-made 3/8″ base studs and 12pt 3/8-UNF nuts (Qty. 8 ea.) included.
  • Internal, “hidden” oil drains, OEM locations top / bottom.
  • Warranty details and conditions are listed in the Installation Manuals ( Manuals download page )
  • Pictures of non-coated cylinders for visual reference only.

Additional information

Weight 17 lbs
Dimensions 18 × 12 × 10 in
